The Stag range of LED Pilot Lights use multi-chip technology and are availble in five colours.
The Stag Electrical range of IP67 rated, PLGT LED Pilot Lights use multi-chip technology which produces a bright and even light, through a choice of 5 colours: Red; Green; Blue; Orange & White.

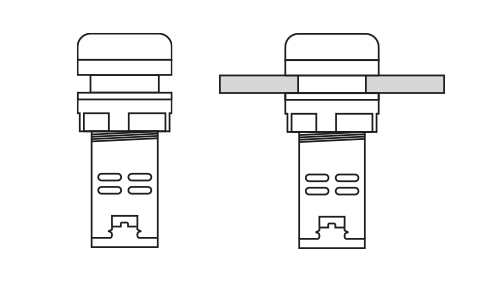

The range is offered in a choice of voltage ratings from 12VAC/DC to 230VAC, and offers a modern and efficient replacement of traditional 22mm indicators. Easy accessible panel locking nut and terminals makes these pilot lights simple to install and replace.
Stag LED Pilot Lights are available in 5 different colours and 4 different voltages as follows:
Part Number (Std) | Part Number (Test) | Lens Colour | Voltage Rating | Ingress Protection | Approvals |
---|---|---|---|---|---|
PLGT-12-RED | n/a | Red | 12VAC/DC | IP67 | |
PLGT-12-GREEN | n/a | Green | 12VAC/DC | IP67 | |
PLGT-12-BLUE | n/a | Blue | 12VAC/DC | IP67 | |
PLGT-12-ORANGE | n/a | Orange | 12VAC/DC | IP67 | |
PLGT-12-WHITE | n/a | White | 12VAC/DC | IP67 | |
PLGT-24-RED | PLGT-T-24AC/DC-RD | Red | 24VAC/DC | IP67 | |
PLGT-24-GREEN | PLGT-T-24AC/DC-GN | Green | 24VAC/DC | IP67 | |
PLGT-24-BLUE | PLGT-T-24AC/DC-BL | Blue | 24VAC/DC | IP67 | |
PLGT-24-ORANGE | PLGT-T-24AC/DC-OR | Orange | 24VAC/DC | IP67 | |
PLGT-24-WHITE | PLGT-T-24AC/DC-WT | White | 24VAC/DC | IP67 | |
PLGT-110-RED | PLGT-T-110AC/DC-RD | Red | 110VAC/DC | IP67 | |
PLGT-110-GREEN | PLGT-T-110AC/DC-GN | Green | 110VAC/DC | IP67 | |
PLGT-110-BLUE | PLGT-T-110AC/DC-BL | Blue | 110VAC/DC | IP67 | |
PLGT-110-ORANGE | PLGT-T-110AC/DC-OR | Orange | 110VAC/DC | IP67 | |
PLGT-110-WHITE | PLGT-T-110AC/DC-WT | White | 110VAC/DC | IP67 | |
PLGT-230AC-RED | PLGT-T-230AC/DC-RD | Red | 230VAC | IP67 | |
PLGT-230AC-GREEN | PLGT-T-230AC/DC-GN | Green | 230VAC | IP67 | |
PLGT-230AC-BLUE | PLGT-T-230AC/DC-BL | Blue | 230VAC | IP67 | |
PLGT-230AC-ORANGE | PLGT-T-230AC/DC-OR | Orange | 230VAC | IP67 | |
PLGT-230AC-WHITE | PLGT-T-230AC/DC-WT | White | 230VAC | IP67 |
Stag LED Pilot Light Accessories as follows:
Part Number | Product Type | For Use With |
---|---|---|
S22-WRENCH | Ø22mm Wrench | For Use With PLGT Range |
12VAC/DC Red
24VAC/DC Green
110VAC/DC Blue
Ø22mm Wrench
