The Stag range of Enclosures are available in 9 different sizes from 80mm round to 380x300x120mm enclosure with hinged lid.

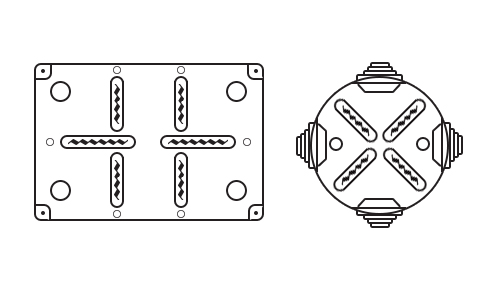

Built to the most rigorous standards with features such as pre-moulded slots for DIN-rail or terminal block attachment, stainless steel locking screws and fast release hinged lid on the largest models, Stag really does supply a user-friendly, high quality enclosure solution for every application, and all at highly competitive pricing.
Made from high strength technical polymer material, and offering protection levels from IP44 o IP56 dependant upon model, the entire Stag Enclosure range include double insulation in accordance with CEI 64-8 standards, as well as being CEI IEC EN 60 670-1, CEI IEC EN 60 670-22 and CEI 23/48 compliant for both domestic and commercial applications.
Stag Enclosures are manufactured in high strength polymer material and are available in 9 different sizes as follows:
|Part Number||Description||Dimensions||Lid Type||IP Rating||Approvals|
|SE02||Round Enclosure inc. glands||∅80x40mm||Clip-on||IP44||CEI 64-8, CEI 23/48|
|SE03||Square Enclosure inc. glands||80x80x50mm||Clip-on||IP44||CEI 64-8, CEI 23/48|
|SE04||Square Enclosure||100x100x50mm||Screw-on||IP56||CEI 64-8, CEI 23/48|
|SE05||Rectangular Enclosure||120x80x50mm||Screw-on||IP56||CEI 64-8, CEI 23/48|
|SE06||Rectangular Enclosure||150x110x70mm||Screw-on||IP56||CEI 64-8, CEI 23/48|
|SE07||Rectangular Enclosure||190x140x70mm||Screw-on||IP56||CEI 64-8, CEI 23/48|
|SE08||Rectangular Enclosure||240x190x90mm||Screw-on||IP56||CEI 64-8, CEI 23/48|
|SE09||Rectangular Enclosure||300x220x120mm||Screw-on, hinged||IP56||CEI 64-8, CEI 23/48|
|SE10||Rectangular Enclosure||380x300x120mm||Screw-on, hinged||IP56||CEI 64-8, CEI 23/48|
Stag Enclosure Accessories as follows:
|Part Number||Product Type||For Use With||Compliance|
|SEBP07||Metal Base Plate (170 x 130mm)||For Use With SE07||EN 61140|
|SEBP08||Metal Base Plate (222 x 178mm)||For Use With SE08||EN 61140|
|SEBP09||Metal Base Plate (287 x 207mm)||For Use With SE09||EN 61140|
|SEBP10||Metal Base Plate (362 x 282mm)||For Use With SE10||EN 61140|
∅80 x 40mm
240 x 190 x 90mm
380 x 300 x 120mm
Base Plate 170 x 130mm
