Stag Buzzers

The Stag range of polycarbonate Buzzers are available with or without LED indicator.

Get A Buzz From Our Audible Indicators

The Stag polycarbonate BZR range of industrial panel mount buzzers are available with an integral intermittent LED indicator for an audible and visual indication solution, or without an LED if only audible indication is required.

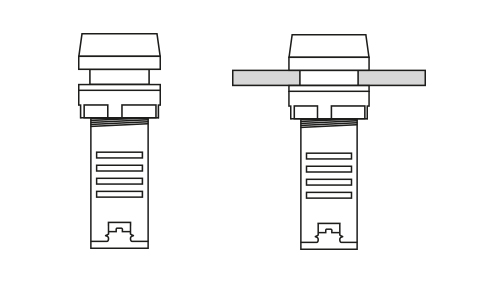

Panel mounting is completed via a 22mm single hole, with the locking nut and terminals being easily accessible for a quick installation. Both BZR and BZRL models are IP40 protedction rated.


Download the Technical Datasheet here

Meet the range...

Stag Buzzers are available with or without red LED indicator in 3 voltages as follows:

Part Number Description Voltage Rating Ingress Protection Approvals
BZR-12 Audible Buzzer 12VAC/DC IP40
BZRL-12 Audible Buzzer with red intermittent LED 12VAC/DC IP40
BZR-24 Audible Buzzer 24VAC/DC IP40
BZRL-24 Audible Buzzer with red intermittent LED 24VAC/DC IP40
BZR-110 Audible Buzzer 110VAC/DC IP40
BZRL-110 Audible Buzzer with red intermittent LED 110VAC/DC IP40
BZR-230AC Audible Buzzer 230VAC IP40
BZRL-230AC Audible Buzzer with red intermittent LED 230VAC IP40

Stag Buzzer Accessories as follows:

Part Number Product Type For Use With
S22-WRENCH Ø22mm Wrench For Use With BZR Range

BZR-24

Audible Buzzer

BZRL-24

Audible Buzzer with LED

S22-WRENCH

Ø22mm Wrench
