Stag Screwless Connectors

The Stag range of screwless connectors are available with either a standard lever or push/pull lever.

Easy To Use, Time-Saving Screwless Connectors

Stag Screwless Connectors are available with either a standard lever or push/pull lever in order to make a quick and easy connection, with both ranges capable of accepting from 0.2mm² - 4mm² solid wire.

Designed specifically to fit into the range of SGB Gel Boxes which provide an IPX8 rated waterproof seal around the screwless connectors. Available in either 2 way, 3 way or 5 way configurations.


Download the Technical Datasheet here

Meet the ranges...

Stag Screwless Connectors are available with either a standard lever handle, or a push/pull lever as follows:

Part Number Description No. of Ways Dimensions Approvals
SLC-2W Screwless Lever Connector 2 Ways 20.50mm x 12.80mm x 14.52mm
SLC-3W Screwless Lever Connector 3 Ways 20.50mm x 17.40mm x 14.52mm
SLC-5W Screwless Lever Connector 5 Ways 20.50mm x 26.60mm x 14.52mm
SPC-2W Screwless Push/Pull Connector 2 Ways 19.70mm x 13.60mm x 10.10mm
SPC-3W Screwless Push/Pull Connector 3 Ways 19.70mm x 19.20mm x 10.10mm
SPC-5W Screwless Push/Pull Connector 5 Ways 19.70mm x 30.40mm x 10.10mm

SLC-2W

2 Way Standard Lever

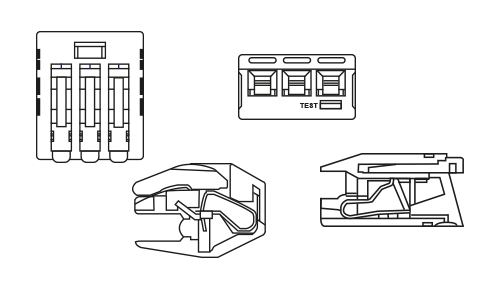

SLC-3W

3 Way Standard Lever

SPC-3W

3 Way Push/Pull Lever


SPC-5W

5 Way Push/Pull Lever
