Stag Waterproof Connectors

Complimenting our Cable Gland range, we now manufacture a range of IP68 Waterproof Connectors.

Stag Manufacturing Innovation

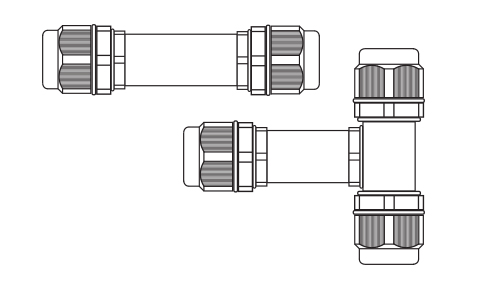

Ideal for use outdoors, thanks to their IP68 protection rating, the new range of Waterproof Connectors from Stag Electrical offer 3 or 5 way connections, in either straight or "T" type bodies. Our Waterproof Connectors are constructed from the finest materials in order to increase their lifespan, and our clever product development team have created a 2-part, high-performance silicone gland seal which will allow you to connect wires from 4mm² up to 11mm² for added versatility.


Download the Technical Datasheet here

Meet the range...

Stag Waterproof Connectors are manufactured in high strength PA66 polyamide material and are available in 4 different versions as follows:

Part Number Body Type No. of Terminals Load Current @ 450VAC Wire Capacity Approvals
SWCA3 Straight 3 25A 0.5-4mm²
SWCA5 Straight 5 16A 0.5-2.5mm²
SWCT3 T-Type 3 16A 0.5-2.5mm²
SWCT5 T-Type 5 16A 0.5-2.5mm²

SWCA3

Straight 3 Way

SWCA5

Straight 5 Way

SWCT3

T-Type 3 Way

SWCT5

T-Type 5 Way
